Built for real‑world conditions
- Front‑service access for fast, simple maintenance
- Modular cabinets for easy scaling and future expansion
- Rugged construction with weather seals — waterproof IP67
- High brightness for daylight visibility: 8000–10000 nit

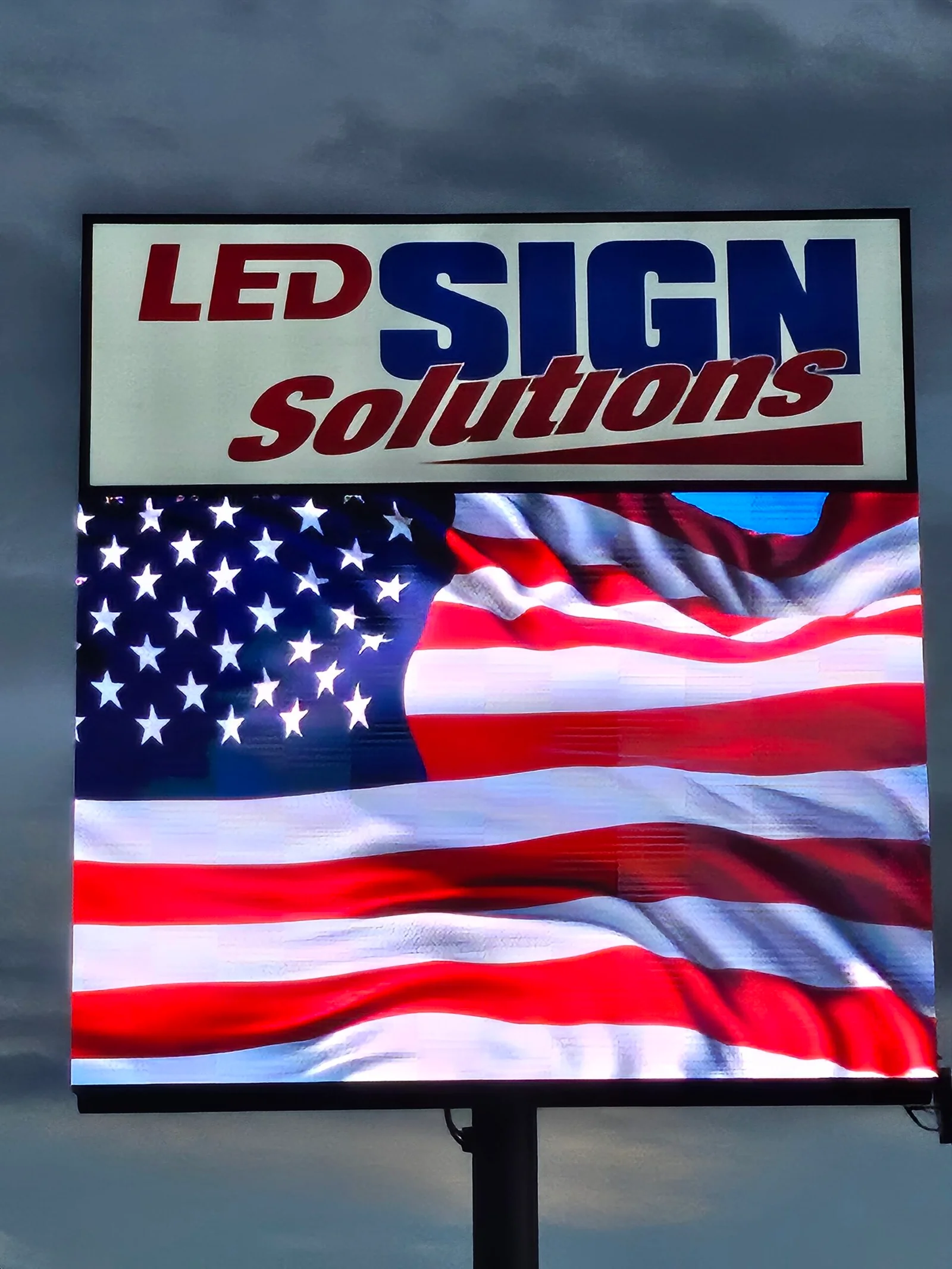

C Series Commercial LED Displays (IP67)

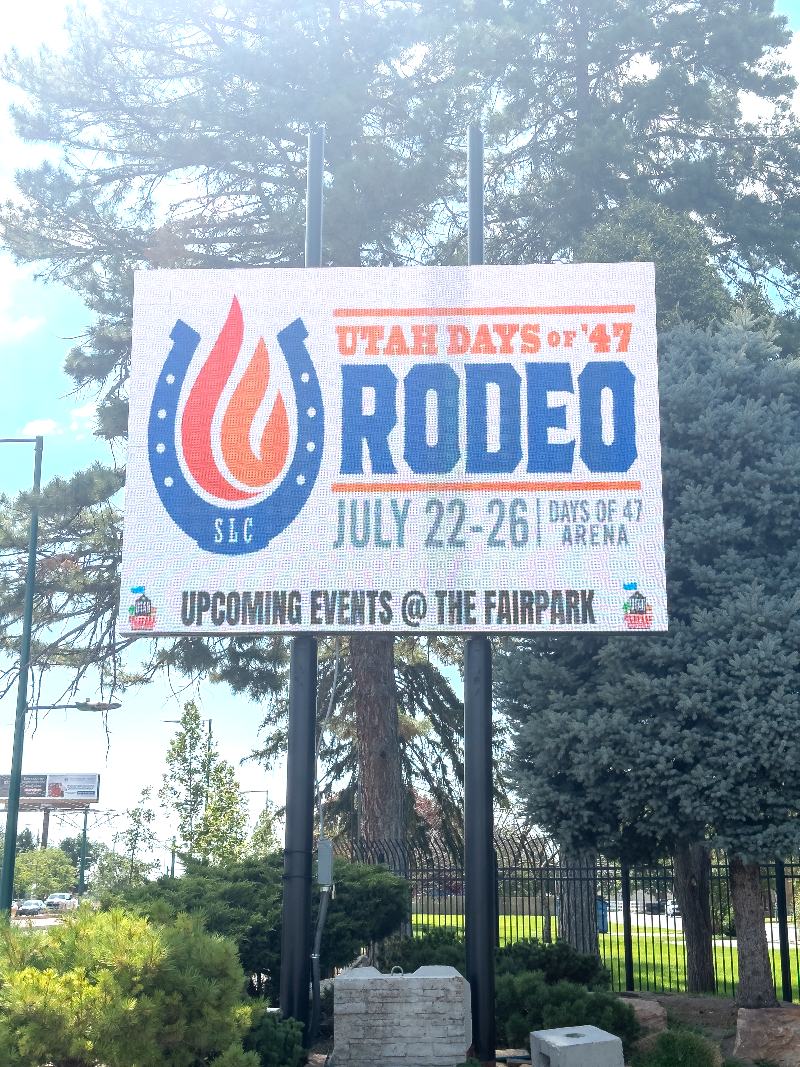

Outdoor LED cabinets built for the elements. Easy front maintenance, modular expansion, and high‑brightness performance for billboards, monoliths, stages, churches, stadiums, and more.
C Series options
- C4 — 4.76 mm pixel pitch, SMD1921 LEDs
- C6 — 6.35 mm pixel pitch, SMD2727 LEDs
- C9 — 9.525 mm pixel pitch, SMD2727 LEDs
- Gray level: 14–16‑bit; Refresh rate: 1920–3840 Hz
Why these specs matter compared to typical LED screens
- IP67 waterproof cabinets — sealed against dust and heavy rain for reliable outdoor operation; many commodity cabinets are lower rated (often IP54), making them more vulnerable to water ingress.
- Front‑service maintenance — modules and power can be serviced from the front, reducing downtime and eliminating rear catwalk requirements many systems still need.
- 8000–10000‑nit brightness — readable in direct sun; lower‑brightness screens can wash out outdoors.
- 1920–3840 Hz refresh — smoother motion and better camera performance; lower refresh panels can flicker on video.
- 14–16‑bit gray level — finer gradation for gradients and skin tones; shallow bit‑depth can cause banding.
- Efficient power — max 450 W/m², average ~150 W/m² helps control operating costs versus higher‑draw alternatives.
- Wide operating range — −40°F to 176°F (−40°C to 80°C) for year‑round reliability; many screens are specified for narrower ranges.
- Outdoor‑proven LED packages — SMD1921 and SMD2727 selected for outdoor contrast, durability, and color stability.
- Pixel pitch options (4.76 / 6.35 / 9.525 mm) — match viewing distance and budget with the right clarity.
- Modular 24 × 48 in cabinets (~55 lb) — speed installation, scaling, and future expansion.
C Series technical specifications
- Pixel pitches: 4.76 mm (C4), 6.35 mm (C6), 9.525 mm (C9)
- LED packages: SMD1921 (C4); SMD2727 (C6/C9)
- Brightness: 8000–10000 nit
- Gray level: 14–16‑bit
- Refresh rate: 1920–3840 Hz
- Max power: 450 W/m²; Average power: 150 W/m²
- Cabinet dimensions: 609.6 × 1219.2 mm (24.0 × 48.0 in)
- Cabinet weight: 25 kg (≈ 55.1 lb)
- Waterproof rating: IP67
- Operating temperature: −40°C to 80°C (−40°F to 176°F)
