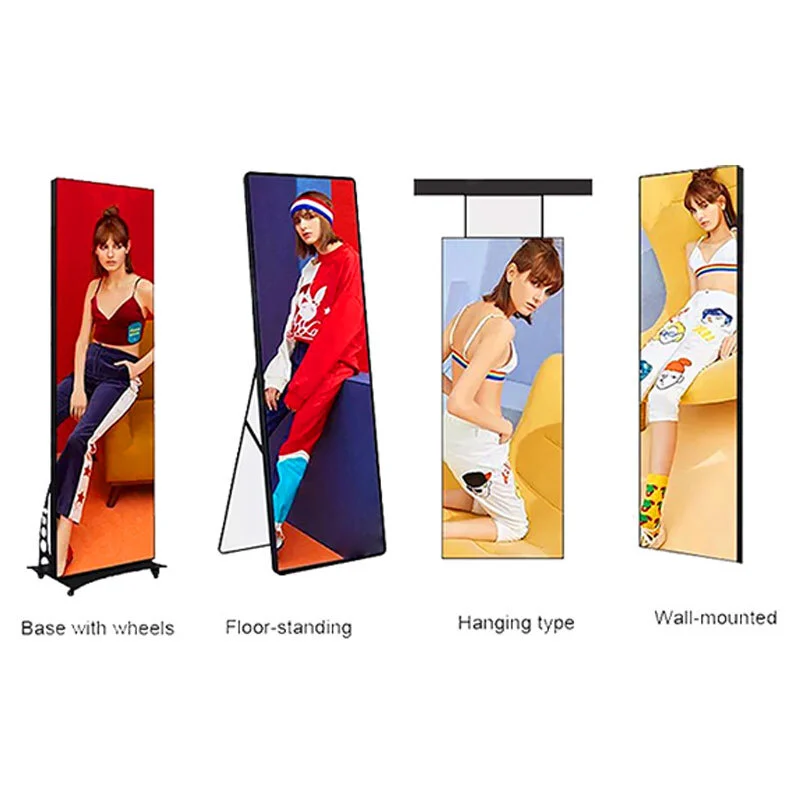

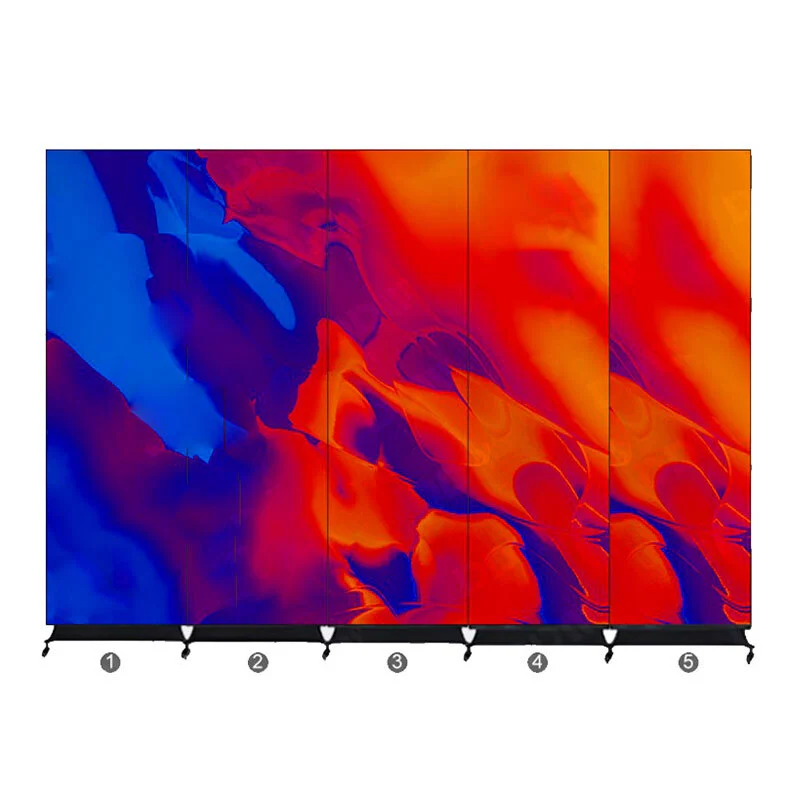

Plug‑and‑play, HD poster screens with seamless splicing. Portable and easy to move for retail, events, lobbies, and exhibitions.
Models: PD1.8 PD2 PD2.5
| Parameter | PD1.8 | PD2 | PD2.5 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.86 | 2 | 2.5 |
| LED Type | SMD 1515 | SMD 1515 | SMD 2121 |
| Module Dimension (W×H) (mm) | 320 × 160 | 320 × 160 | 320 × 160 |
| Module Resolution (W×H) (Pixel) | 172 × 86 | 160 × 80 | 128 × 64 |
| Pixel Density (Pixel/m²) | 288,906 | 250,000 | 160,000 |
| Scan Mode (S) | 43 | 40 | 32 |
| Cabinet Dimension (W×H) (mm) | 688 × 1032 | 640 × 960 | — |
| Cabinet Resolution (W×H) (Pixel) | 344 × 1032 | 320 × 960 | 256 × 768 |
| Cabinet Material | Iron | Iron | Iron |
| Cabinet Weight (Kg) | 75 | 75 | 75 |
| Best Viewing Distance (m) | 1.8 | 2 | 2.5 |
| Brightness (nits) | 900 | 900 | 900 |
| Ingress Protection (Front/Rear) | IP40 | IP40 | IP40 |

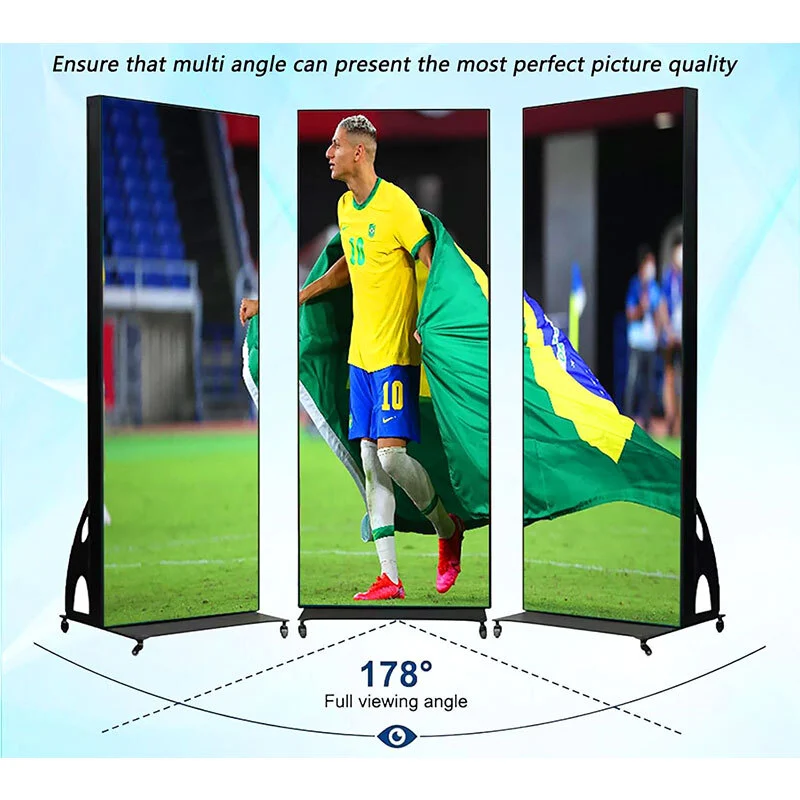

| Viewing Angle | H:140° V:140° | H:140° V:140° | H:140° V:140° |
| Color Temperature | 3200–9500K | 3200–9500K | 3200–9500K |
| Gray Level | 14–16 bit | 14–16 bit | 14–16 bit |
| Max Power Consumption (W/m²) | 600 | 600 | 600 |
| Average Power Consumption (W/m²) | 200 | 200 | 200 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Maintenance Method | Rear / Front Maintenance | Rear / Front Maintenance | Rear / Front Maintenance |
| Operating Temperature | −20°C ~ 60°C | −20°C ~ 60°C | −20°C ~ 60°C |
| Operation Humidity | 10%–95% RH | 10%–95% RH | 10%–95% RH |
| Input Voltage | AC110–220V ±15% 50/60Hz | AC110–220V ±15% 50/60Hz | AC110–220V ±15% 50/60Hz |
| MTBF (Hours) | 50000 | 50000 | 50000 |
| Life Time (Hours) | 100000 | 100000 | 100000 |
